• CCS Approved Power 220 / 110VAC HP-528 Marine Ais Class B Transponder
  • CCS Approved Power 220 / 110VAC HP-528 Marine Ais Class B Transponder

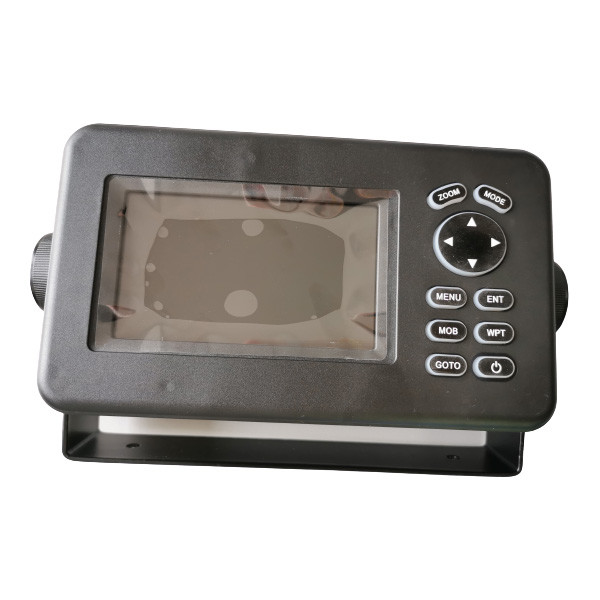

CCS Approved Power 220 / 110VAC HP-528 Marine Ais Class B Transponder

CCS Approved Power 220 / 110VAC HP-528 Marine Ais Class B Transponder

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CCS
Model Number: JVL-36

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $280-360/set
Packaging Details: Carbon package
Delivery Time: 15-25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000set/Month
Get Best Price Contact Now

Detail Information

Type: AIS Transponder Warranty: 1 Years
Use: GPS AIS Transponder Screen Size: 4.3"
Battery: No Color: Black
Name: HP-528 Voltage: 12V
High Light:

HP-528 class b transponder

,

110VAC class b transponder

,

220VAC class b transponder

Product Description

Marine AIS Class B Transponder 4.3inch Screen HP-528 Marine Gps Navigation Systems



Product Description:



Quantity(Sets) 1-5 >5
Est. Time(days) 10 To be negotiated
Brand Name: JUVI
Product Name: AIS Transponder
Power: 220/110V AC
Working Temperature: -20°C~+50°C
Transmission Error: ± 0.2°
Dynamic Error: 1.5°
Static Error: ± 1.0°
Standby Power: 24V DC
Type Gps Navigator
Warranty 1 Years
Use GPS AIS transponder
Screen size 4.3"
Battery No
Color Black
Name HP-528
Voltage 12V



HP-528 is a Class B AIS Transponder

Capable of exchanging navigation and ship data with other ships, base station AtoN, SAR, BUOY,MOB etc. Excellent Navigation specification and various display Let you enjoy the voyage pleasure.

More details please feel free to contact Debbie Liu : )

Marine AIS transponder GPS Chartplotter
Feature: * Radar Plotter display and multi-ists display * Detailed target information display * Watch function for friendships and buoy * Visual and audio alarm of Collision, SART,MOB, * Watch target lost, watch target deviation etc. * Safety and normal Message display * External Alarm output port
* Stores up to 10,000 waypoints, 100 routes and 3000 tracks * Visual and audio alarm of rival Anchor, XTE Speed, Trip, Odometer etc. * Man Overboard feature and quick GOTO mark set



GPS Receiver Characteristics:



1. Receiver: 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position

2. Acquisition: Cold start: 27 seconds average

Warm start: 27 seconds average

Hot start: 1 seconds average

3. Update rate: 1/second, continuous

4. Accuracy: Position: <2.5 meters(95%) without S/A

Velocity: 0.1 meter/sec without S/A

Time: ±100ns synchronized to GPS time

5. Dynamics: Altitude: 50,000m Max

Velocity: 500 m/s

Acceleration: 4g Max

6. Datum: WGS 84 & Others

7. Interface: NMEA 0183 Input , RS232 output

8. Antenna: HA-017


We are specializing in the development of a variety of marine electrical lighting equipment, product development and sales. We are the excellent supplier of marine supporting goods and an ideal cooperation partner of design, shipbuilding, maritime transportation. At present, our main product includes navigation lights series, marine fluorescent lights series, incandescent lights series, floodlight series, explosion-proof light series, electrical connectors series, ship bells, ship bulbs, ship fittings, and other kinds of marine lamps, marine light fixture accessories.

CCS Approved Power 220 / 110VAC HP-528 Marine Ais Class B Transponder 0


Main products:


1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light, etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic, etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy, etc.
5. Customized products: according to customers' requests.



Q1: Why we choose you?



11 professional engineers can provide overall solution services.

13 years specializing in marine deck equipment.

18 long-term cooperation supporting factories.

24 hours a day after-sale technical support.

Q2: What kind of payments do you accept?

T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal, etc..

Q3: How about the Delivery Time?

We could finish the production within 30 days

Q4: What's the MOQ?

MOQ is 1 set.
