Pressure 2.5MPa Marine Bronze Flanged GB/T588-2008 Stop Check Valve

Pressure 2.5MPa Marine Bronze Flanged GB/T588-2008 Stop Check Valve

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CE
Model Number: JVL-47

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: $45-65pcs
Packaging Details: Standard export package
Delivery Time: 15-25 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000set/Month
Get Best Price Contact Now

Detail Information

Standard Or Nonstandard: Standard Product Name: Industrial Flanged End JIS/GOST/API/DIN Gate Valve
Standard: ANSI BS DIN JIS Connection: Threaded
Medium: Water Oil Gas Color: Customer's Request
Working Pressure: Normal Valve Type: Concentric,Wafer Type
High Light:

GB/T588-2008 Cast Steel Valve

,

2.5MPa stop check valve

,

GB/T588-2008 stop check valve

Product Description

Pressure 2.5MPa Marine Bronze Flanged GB/T588-2008 Stop Check Valve

Cast Steel Valve Marine Bronze Flanged Stop Check Valves GB/T588-2008





Technical data:



Nominal pressure Nominal diameter (mm) Applicable medium
0.6 50-300 Seawater, freshwater, lubricanting oil, fuel oil
t ≤ 250°C steam
1.0 65-250
1.6 20-50
2.5 15-125



The material of main parts:



Parts name Material
Name Trademark
Body cover cast aluminum bronze Z Cu Sn 5 Pb 5 Zn 5
Disc
Seat
Stem Aluminum bronze QAl9-2



Maintenance:



1. Marine valves should be stored in a dry and ventilated room, and both ends of the passage should be blocked.



2. Valves stored for a long time should be checked regularly to remove dirt and apply anti-rust oil on the processing surface.



3. After installation, regular inspections should be carried out. The main inspection items are



(1) Wear of the sealing surface.



(2) Wear of trapezoidal threads of the valve stem and valve stem nut.



(3) Whether the packing is out of date and invalid, if damaged, it should be replaced in time.



(4) After the valve is overhauled and assembled, a sealing performance test should be carried out.

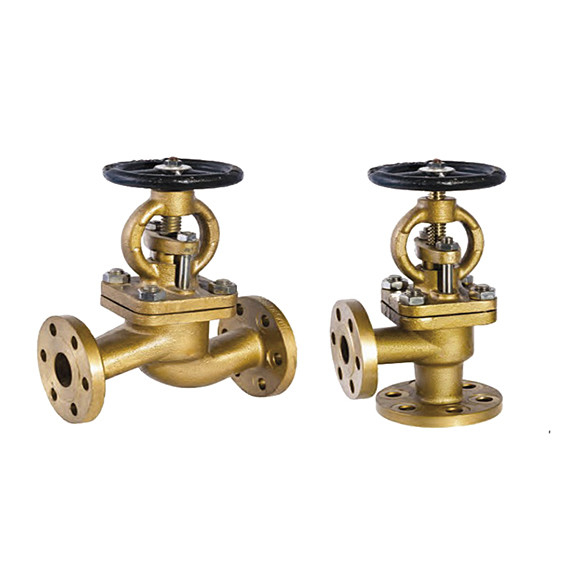

Pressure 2.5MPa Marine Bronze Flanged GB/T588-2008 Stop Check Valve 0



The following two points should be paid attention to when selecting and installing the globe valve.


1. According to different working media and working conditions, select the appropriate material and connection method of the stop valve (different working conditions include the pressure, temperature and flow of the working medium);


2. The installation of the shut-off valve must strictly abide by the principle of low inlet and high outlet, and pay attention to the mark of the flow direction on the valve body.


To close or open the general shut-off valve, just turn the handwheel directly. Some stop valves are equipped with a gear drive opening device. The biggest advantage of using this drive device to open or close the valve is that it can reduce the labor intensity of the operator. At present, this kind of valve is only used in underwater seawater systems.


Note:



The ballast water pipes passing through the collision bulkhead should be equipped with a shut-off valve capable of operating above the freeboard deck (the bulkhead deck of passenger ships).



The valve should be installed on the fore-point tank side of the fore-point bulkhead. It also has a device to indicate whether the valve is open or closed so that the valve can be closed on the deck immediately in the event of head sea damage to prevent seawater from entering the ballast water system.



Material:



The valve body material adopts: carbon steel, cast iron, stainless steel, bronze, brass, forged steel, alloy steel, etc.; the sealing surface materials include copper alloy, carburized steel, hard alloy, rubber plastic, PTFE soft and hard seal, Can adapt to the needs of different media. Products are widely used in petrochemical, shipbuilding, nuclear power, chemical industry, metallurgy, electric power, food, environmental protection construction, and other fields.
