Anchor Mooring Tugger Drum Capstan 50KN 100KN Marine Hydraulic Winch

Anchor Mooring Tugger Drum Capstan 50KN 100KN Marine Hydraulic Winch

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: in stock
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Hydraulic Mooring Winch Application: Ship Marine Boat Vessel Yacht
Load: 10KN To 2000KN Rated Pull: 10KN To 2000KN
Rated Speed: ≥12m/min Drum Cpacity: Up To ø100x250m
Power: Up To 270KW MOQ: 1 Set
High Light:

50KN Marine Hydraulic Winch

,

100KN Marine Hydraulic Winch

,

50KN ship anchor winch

Product Description

Anchor Mooring Tugger Drum Capstan 50KN 100KN Marine Hydraulic Winch

Marine Hydraulic Winch Anchor Mooring Tugger Drum Capstan 50KN 100KN





Specification of Hydraulic Mooring Winch



Specification of Hydraulic Mooring Winch
Load Rated Pull Rated Speed Drum Cpacity Power
10KN 10KN ≥12m/min ø11x150m 5.5KW
40KN 40KN ≥15m/min ø17.5x150m 22KW
100KN 100KN ≥12m/min ø30x200m 45KW
200KN 200KN ≥9.6m/min ø41x250m 75KW
400KN 400KN ≥7.8m/min ø56x250m 110KW
600KN 600KN ≥6m/min ø64x250m 132KW
1000KN 1000KN ≥4m/min ø85x250m 132KW
2000KN 2000KN ≥4m/min ø100x250m 270KW



Ship winch



Marine winches are light and small lifting equipment (see hoisting machinery) that use a reel to wind a wire rope or chain to lift or tow heavy objects, also known as a hoist. The winch can be used alone or as a component in machinery such as lifting, road construction and mine hoisting. It is widely used because of its simple operation, large rope winding volume and convenient displacement.



There are two types of winches, manual and electric. The transmission mechanism of the handle rotation of the manual winch is equipped with a stopper (ratchet and pawl), which can keep the heavy object in the required position. The manual winch used for assembling or lifting heavy objects should also be equipped with safety handles and brakes. Manual winches are generally used in places with small lifting capacity, poor facility conditions, or no power supply.



Electric winches are widely used in places with heavy work and large traction requirements. The electric motor of the single-drum electric winch (pictured) drives the drum through the reducer, and a brake is installed between the electric motor and the input shaft of the reducer. In order to meet the needs of lifting, traction and rotation, there are also double drum and multi-drum winches.



Marine winches series:



1, marine electric winches,

2, marine pneumatic winches,

3, marine ladder winches,

4, marine hand-cranked winches,

5, marine steel rope winches,

6, marine explosion-proof double drum winches.

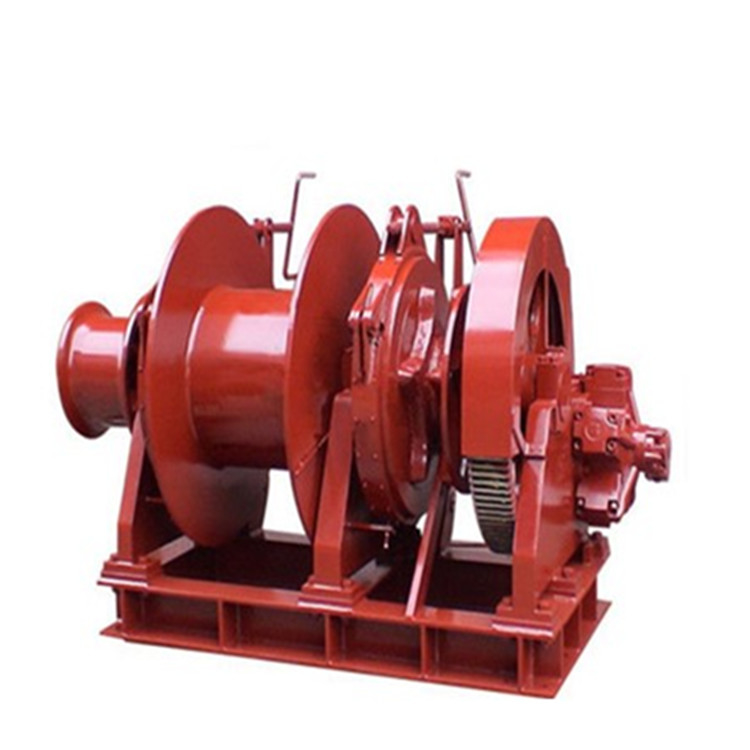

Anchor Mooring Tugger Drum Capstan 50KN 100KN Marine Hydraulic Winch 0



Classification of winch



Large-tonnage non-standard hoist: mainly used for hoisting, pulling, pushing and dragging heavy objects. Such as the installation and disassembly of various large and medium-sized concrete, steel structure and mechanical equipment. Its structure is characterized by orderly arrangement of wire ropes, reliable installation with cranes, suitable for road and bridge projects such as wharfs, bridges, ports, and large-scale factories and mines installation equipment. It is a way to use external force (such as electric motors) to drive him to run, and then use electromagnetic brakes and locks. The brake controls it to not run freely without power. At the same time, after being driven by the motor to decelerate, it drives a wheel to run, on which a steel cable or other things can be wound.

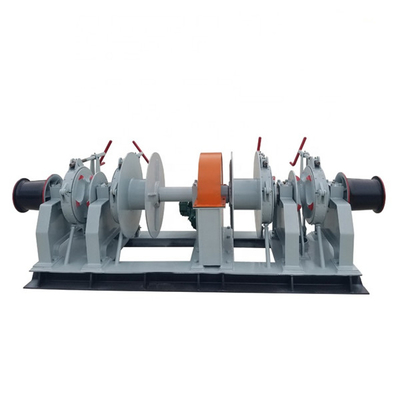

Anchor Mooring Tugger Drum Capstan 50KN 100KN Marine Hydraulic Winch 1
