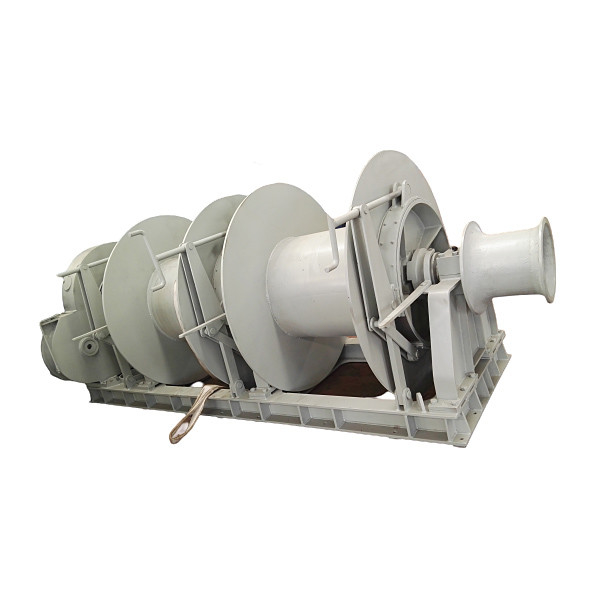

75KW Power 118KN Marine Hydraulic Winch For 50000T Products Tanker

75KW Power 118KN Marine Hydraulic Winch For 50000T Products Tanker

Product Details:

Place of Origin: China
Brand Name: JV
Certification: LR,CCS,BV,ABS,KR
Model Number: JVL-13

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: $2000-20000/Set
Packaging Details: Standard export package
Delivery Time: 45-65 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Set/Month
Get Best Price Contact Now

Detail Information

Power Source: Hydraulic Application: Boat
Capacity: 5~650KN Material: Steel
Motor: Winch Motor Color: Customer Requirement
Usage: Marine Boat Yacht Sailboat Warranty: 12 Months
High Light:

75KW Marine Hydraulic Winch

,

118KN Marine Hydraulic Winch

,

118KN ship anchor winch

Product Description

75KW Power 118KN Marine Hydraulic Winch For 50000T Products Tanker

Marine Hydraulic Winch 118KN Hydraulic Winch For 50000T Products Tanker 75KW Power Hydraulic Mooring Winch





Product description:



This product is suitable for ship mooring, lifting and towing heavy objects in offshore platforms and engineering fields.


Technical features:


1. Manual brake: During the use of the winch, the brake system is equipped with manual brake and manual brake.
2. Convenient operation: The winch control valve and air motor are combined design, only one control handle can be operated, and the speed of the winch can be controlled at the same time.
3. Pneumatic clutch device: by operating the lever valve, you can control the four operating states of the reel and the anchor rope barrel to be separated, synchronized, and completely separated



JUVI:



11 professional engineers can provide overall solution services.
13 years specializing in marine deck equipment.
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support.



Inspection method of application winch:



1. The reducer of the hydraulic winch should be maintained on a regular basis to see whether the transmission gear is engaged, whether there is movement, whether the damage of the tooth is serious, or there are cracks and other conditions.

2. The key check is to check whether the galvanized steel wire rope is coiled neatly on the drum, whether the coupling is deformed, whether the rope head is strong, if the posture of the component fails, it must be adjusted immediately.

3. When using hydraulic winches, pay attention to check whether the bolts, shaft pins, and other connecting parts fall off. It is very important to pay attention to the rolling bearing bolts. If they fall off, they should be tightened immediately.



Main specification and parameter for hydraulic mooring winch
Specification of Hydraulic Winch
Rated Pull
(kN)
Rated Speed (m/min)
Drum Capacity
(m)
Motor Power
(kW)
10KN 10 ≥12 ø11x150 5.5
20KN 20 ≥12 ø17.5x150 22
40KN 40 ≥15 ø30x200 45
50KN 50 ≥15
ø41x250
75
75KN 75 ≥15 ø56x250 110
100KN 100 ≥12 ø64x250 132
160KN 160 ≥12 ø85x250 132



Main specification and parameter for Electric mooring winch
Specification of Electric Winch
Rated Pull
(kN)
Rated Speed
(m/min)
Drum Capacity
(m)
Motor Power
(Kw)
5KN
5
≥12
Φ8x100
3/1.2
50KN
50
≥15
Φ20.5x180
30/30/22
100KN
100
≥15
Φ30x200
45/45/30
200KN
200
≥9.6
Φ41x250
60/60/45
400KN
400
≥7.8
Φ56x250
85/85/64
600KN
600
≥6
Φ64x250
85/85/65
1000KN
1000
≥4
Φ95x250
85/85/66
2000KN
2000
≥4
Φ100x250
180/180/135

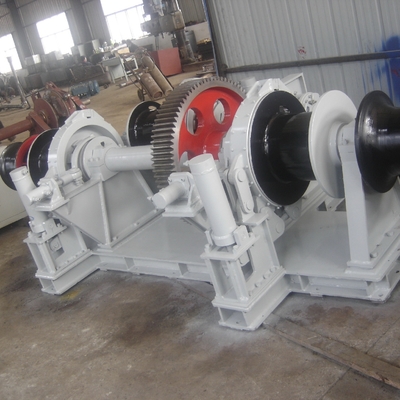

75KW Power 118KN Marine Hydraulic Winch For 50000T Products Tanker 0



75KW Power 118KN Marine Hydraulic Winch For 50000T Products Tanker 1



75KW Power 118KN Marine Hydraulic Winch For 50000T Products Tanker 2



75KW Power 118KN Marine Hydraulic Winch For 50000T Products Tanker 3
