Rated Pull 500KN Grooved Drum Capstan 25Ton 60Ton Marine Hydraulic Winch

Rated Pull 500KN Grooved Drum Capstan 25Ton 60Ton Marine Hydraulic Winch

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: in stock
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Hydraulic Anchor Winch Application: Ship Marine Boat Vessel Yacht
Drum: One Drum/ Double Drum Drum Type: Grooved Or Not
Rated Speed: ≥12m/min Rope: Pp Rope/ Wire Rope
Warranty: 1 Year MOQ: 1 Set
High Light:

60Ton Marine Hydraulic Winch

,

500KN Marine Hydraulic Winch

,

60Ton marine anchor winch

Product Description

Rated Pull 500KN Grooved Drum Capstan 25Ton 60Ton Marine Hydraulic Winch

Ship Boat Mooring Rope Towing Winch Grooved Drum Capstan 60Ton





Specification



Rated pull(KN) Rated speed(m/min) Drum capacity(mm x m) Braking force(KN) Motor power(KW) Weight(T)
20 12 15 x 200 60 11 2.5
30 16 x 200 90 15 3
50 22 x 220 150 22 3.5
80 28 x 220 240 37 4
100 30 x 220 300 45 5
125 32 x 220 375 55 5.5
150 36 x 220 450 75 6
200 10 39.5 x 350 600 75 9
250 43 x 450 750 90 12.5
320 8 47 x 550 960 90 18
400 52 x 600 1000 110 22
500 9 56 x 600 750 180 25

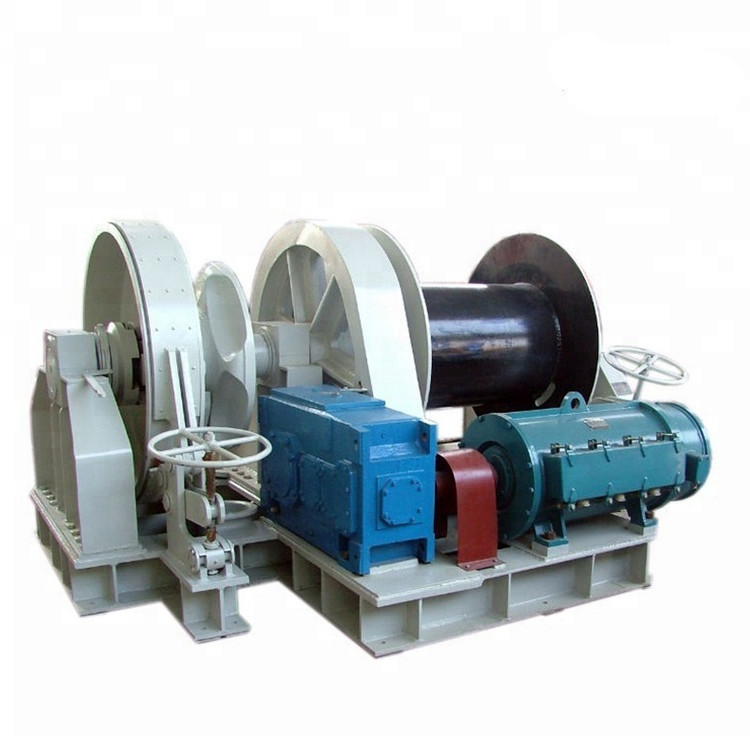

Rated Pull 500KN Grooved Drum Capstan 25Ton 60Ton Marine Hydraulic Winch 0



Precautions when using the winch:



1. The steel wire ropes on the reel should be arranged neatly. If overlapping or oblique winding is found, the machine should be stopped and rearranged. It is strictly forbidden to pull and step on the wire rope with hands or feet during rotation. The wire rope is not allowed to be fully released, and at least three turns should be retained.
2. The wire rope is not allowed to be knotted or twisted. When the wire is broken more than 10% within a pitch, it should be replaced.
3. During operation, no one is allowed to cross the wire rope, and the operator is not allowed to leave the hoist after the object (object) is lifted. Objects or cages should be lowered to the ground during rest.
4. During the operation, the driver and signalman should maintain good visibility with the hoisted object. The driver and signalman should cooperate closely and obey the unified signal command.
5. In case of a power outage during operation, the power supply should be cut off and the lift should be lowered to the ground.
6. Obey the signal of the commander during work, the signal is unknown or may cause an accident
The operation should be suspended when the situation is clarified, and the operation can be continued.
7. If there is a sudden power failure during operation, the knife should be opened immediately and the transported objects should be put down.
8. After the operation is completed, the material tray should be dropped to the ground and the electric box should be locked.
9. The steel wire rope is in use and the machinery is worn and damaged. Spontaneous combustion corrosion and local damage are inevitable. Protective oil should be painted at intervals.
10. Overload use is strictly prohibited. That is, the maximum load capacity is exceeded.
11. Be careful not to get knotted, flattened, injured by arc, or corroded by chemical media during use.
12. Do not directly hoist high-temperature objects, and protect the objects with edges and corners.
13. The steel wire rope used should be checked frequently during use, and it should be scrapped immediately if it reaches the scrap standard.



Rated Pull 500KN Grooved Drum Capstan 25Ton 60Ton Marine Hydraulic Winch 1
