• 24V 60W CXD8 Light Intensity 60000cd Daylight Marine Signal Lights
  • 24V 60W CXD8 Light Intensity 60000cd Daylight Marine Signal Lights
24V 60W CXD8 Light Intensity 60000cd Daylight Marine Signal Lights

24V 60W CXD8 Light Intensity 60000cd Daylight Marine Signal Lights

Product Details:

Place of Origin: China
Brand Name: JV
Certification: CCS
Model Number: JVL-21

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $133-311/pcs
Packaging Details: Standard export package
Delivery Time: 15-25 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/Month
Get Best Price Contact Now

Detail Information

Code: 330641/330646/330647 Voltage: 24V
Power: 60W Light Intensity: 60000cd
Visibility: 2n.m Lamp Holder: G6.35
Protection Class: IP44 Weight: 5.28kg
High Light:

CXD8 Marine Signal Lights

,

24V 60W Marine Signal Lights

,

CXD8 boat signal light

Product Description

24V 60W CXD8 Light Intensity 60000cd Daylight Marine Signal Lights

Marine Signal Lights 24V 60W CXD8 Daylight Signal Light Boat Signal Light





The scope of application:


Applied to daylight signal communication between the ships.


Main technical parameter


● Voltage/Power: 24V/60W
◆ Light intensity: 60000cd
◆ Light pllar angle: 6°
◆ Telescope magnification: 4
● Telescope visual angle: 3°
◆ Visibility: 2n.m
◆ Lamp holder; G6.35
◆ Plug: Four pin 25M-4A
● Protection class: IP44
◆ Weight: 5.28kg
● Cable outside diameter: dia9.5


Products characteristic:


1. With good quality cast aluminum shell and mechanical flash device.
2. Light, convenient to operate, and bring.


Production authentication:


1. Approval by CCS(China Classification Society), certificate number: 00515Q20619R0M.
2. Conform toand JISF8456 1996.
3. Patent No: ZL 2014 3 0497341.5.

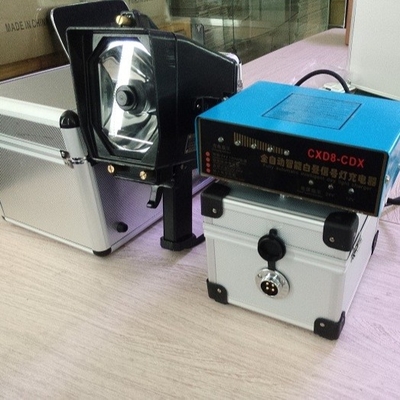

Controller CXD8-CDX


◆ Input: AC110V/60Hz. AC220V/50Hz/60Hz
● Output: DC24V,DC12V
● Capacity: 7Ah
◆ Temperature: -25*C ~45°C
◆ Socket: Four pin 25M-4B Three-pin 25M-3B
◆ Protection class: IP20
● Weight: 2.53kg
● Mark the voltage and frequency when ordering



CXD8
Daylight signal light
24V/60W
IP44
60000cd
5.28kg



Company Introduction:



Chongqing Juvi Marine Machinery Company is an integrated marine technology company that presently specializes in product design, production, and sales.

Juvi company is administered by the marine equipment production systems.

Every factory that our partner with has passed theCCS,ABS,DNV,LR,NK,RINA,ISO9002, TS16949, UL and other related systems authentication.
More than 10 years of accumulated experience, high-quality products, coupled with our philosophy of absolute integrity in all business dealings have earned us unanimous praise from old and new clients alike, as well as a distinctive reputation in the industry.



Types



The design and manufacture of ship lights must comply with the relevant provisions of ship regulations and international conventions, and can be installed and used only after the ship inspection department has passed the inspection and issued a certificate.



In accordance with the provisions of the international conventions, the ship’s related facilities must be equipped with various lamps to display various signals in order to indicate its location, status, and type when the ship is under night sailing, operation or low visibility. , In order to identify and avoid.



The light arc, visibility distance, chromaticity, enclosure protection, and installation position of navigation lights and signal lights have strict regulations.



Marine lighting lamps collectively referred to as lamps used for lighting on ships.



Cabin lights, ceiling lights, walkway lights, emergency lights, floodlights for deck work lighting, searchlights for the long-distance search of targets, explosion-proof lights for use in explosive atmospheres, portable lights for temporary workplaces, and Lighting lamps for living areas, etc.
