Product Details:

Place of Origin: China
Brand Name: JUVI
Certification: CE, CCS, ABS
Model Number: CXH1-21PL, CXH2-21PL, CXH3-21PL, CXH4-21PL, CXH6-21PL

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Standard Export Packing
Delivery Time: 1-7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000+PCS+Month
Get Best Price Contact Now

Detail Information

Product Name: Plastic Single Deck Red Green Blue White Yellow ABS CCS Ship Marine Signal Navigation Lights Light Source: Halogen BAY15d
Class Certificate: IP56 Item Type: Marine Nav. Signal Light
Application: Marine Ship, Boat, Vessel, Etc Material: Plastic
Lamp Power(w): 25W Type: Starboard Light, Port Light, Masthead Light, Stern Light, All-round Light
High Light:

25W Marine Signal Lights

,

2nm Marine Signal Lights

,

25W signal navigation lights

Product Description

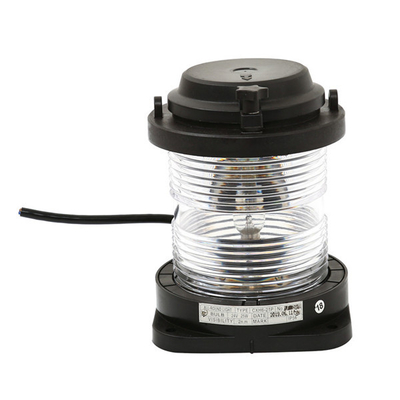

Visibility 2nm Red / Green / Blue Color 25W Marine Signal Lights

Plastic Single Deck Red Green Blue White Yellow ABS CCS Ship Marine Signal Navigation Lights



Specification of Marine Signal Navigation Light



Type Model Visibility Level arc Light source IP rate Cable outside dia. Light color Voltage Power

CXH-21PL
Single-deck

Navigation

signal light

CXH1-21PL Single-deck starboard light 2n.m 112.5° Halogen IP56 10~12 Green AC100-240V 50/60Hz, DC24V 12V 25W
CXH2-21PL Single-deck port light 2n.m 112.5° Red 25W
CXH3-21PL Single-deck masthead light 5n.m 225° White 25W
CXH4-21PL Single-deck stern light 2n.m 135°

White/

Yellow

25W
CXH6-21PL Single-deck all-round light 2n.m 360°

Red/

Green/

White

25W



The scope of application



Applied to the ships with the length 12m or above 12m(<50m) as lamp signal liaison when night navigation.



Products characteristic



1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.

2. The signal lights have the whole seal structure, it is waterproof under the bad environment.

3. The signal lights uses exclusive the special signal bulb which conform to the ship crterion, it can replace bulb as open the up cover

4. The signal lights can work normally under the temperature -30℃-55℃.



Adopt standard



1. Conform toand.

2. Conform to the international standard IEC60598-2008.

3. Conform to the standard of marine electric signal light's technical condition GB/T 3028-1995.



Production authentication



1. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.

2. Passed the authentication of CE.

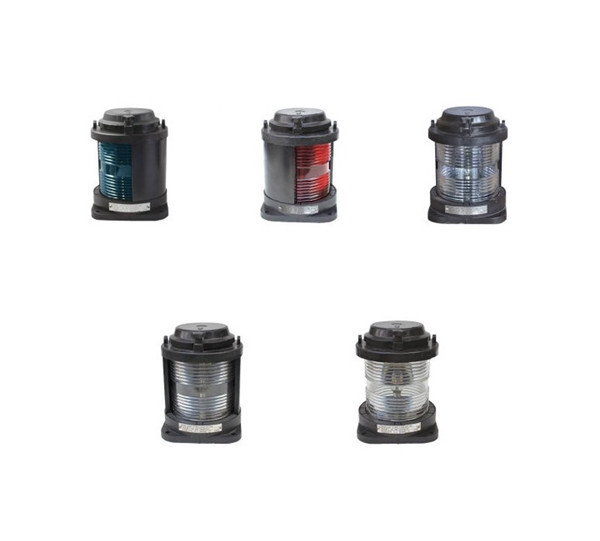

Marine navigation signal light series



Light source

LED, halogen, etc

Suitable ship length

Below 12m

From 12m to 50m

More than 50m

Light color

Red, green, blue, white,yellow

Visibility

1nm, 2nm, 3nm, 6nm

Level arc 112.5°, 135°, 225°, 360°

Installation position Type

Starboard light

Port light

Masthead light

Stern light

All-round light

Lens/deck type

Single len/deck, double len/deck

Material

Steel, plastic, brass, etc

Voltage

110V, 220V, 12V, 24V

Certificate

CE, CCS, ABS



Visibility 2nm Red / Green / Blue Color 25W Marine Signal Lights 0Visibility 2nm Red / Green / Blue Color 25W Marine Signal Lights 1Visibility 2nm Red / Green / Blue Color 25W Marine Signal Lights 2



Our Major Products

1. Marine Navigation Signal Light.
2. Marine Ceiling Light, Wall Light, Portable Light, Deck Work Light, Bedside Light, Mirror Light, etc.
3. Marine Searchlight, Flood Light, etc.
4. Marine Explosion-proof Light.
5. Plug/Socket/Switch/Junction Box, etc.

Q1: Why we choose you?


11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .


Q2: What kind of payments do you accept?


T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..


Q3: How about the Delivery Time?


We could finish the production within 2 days


Q4: What's the MOQ?


MOQ is 1 set.



Q5: Packaging



1.Wooden Case; 2.Iron Frame; 3.According to customers' request;


Q6: Shipping


By Express/ Air/ Sea/ Train.
