250W 400W Flood Lighting 24.5kg CFT2 Explosion Proof Light Fixture

250W 400W Flood Lighting 24.5kg CFT2 Explosion Proof Light Fixture

Product Details:

Place of Origin: Chongqing of China
Brand Name: JUVI
Model Number: CFT2

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Delivery Time: in stock
Payment Terms: Western Union, MoneyGram, D/P, D/A, L/C, T/T
Get Best Price Contact Now

Detail Information

Name: Spot Light Power: 250W 400W
Explosion-proof Mark: Exd IIBT3/ Exd IIBT2 Material: Cast Aluminum
Lamp Holder: E40 Illuminant: High-pressure Sodium Lamp/ Metal Halide Lamp
Protection Class: IP56 Weight: 24.5kg
High Light:

250W Explosion Proof Light Fixture

,

CFT2 Explosion Proof Light Fixture

,

CFT2 explosion proof led flood light

Product Description

250W 400W Flood Lighting 24.5kg CFT2 Explosion Proof Light Fixture

Explosion Proof Light Fixture CFT2 Flood Lighting Marine Lamp





Specification



    Power Voltage Weight Protection class Holder Lamp Illuminant Cable outside Diameter (mm) Explosion-proof mark LM Luminous flux
CFT2 flood light 250W 220V/50Hz 220V/60Hz 110V/60Hz 24.5kg IP56 E40 High-pressure sodium lamp 11 ~ 13 Exd IIBT3 26000
metal halide lamp 20500
400W High-pressure sodium lamp Exd IIBT2 47000
metal halide lamp 36000



250W 400W Flood Lighting 24.5kg CFT2 Explosion Proof Light Fixture 0

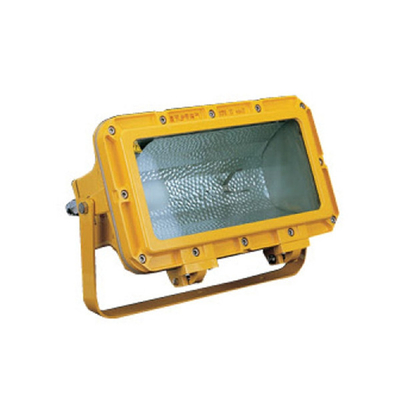

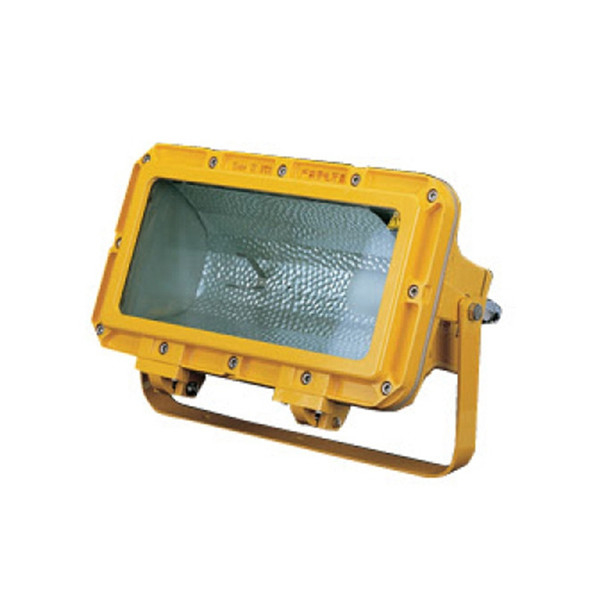

CFT2 flood light



The scope of application:



1. The shell adopts good quality cast down alumnium, good quality toughened glass lampshade. The lamp body can adjust up and down 45..

  • The lamp body adopts seal structure, has high waterproof performance and anticorrosive performance.
  • Equipped ballast inside, no need to equipped ballast box (except the vollage is 110V/60Hz).
  • Conform toand national standard GB3836-2000, GB12045, En50014, En50018, En60079.

250W 400W Flood Lighting 24.5kg CFT2 Explosion Proof Light Fixture 1250W 400W Flood Lighting 24.5kg CFT2 Explosion Proof Light Fixture 2



Explosion-proof lights



Explosion-proof lamp refers to a lamp used in dangerous places where flammable gas and dust exist, and can prevent the arc, spark and high temperature that may be generated inside the lamp from igniting the flammable gas and dust in the surrounding environment, so as to meet the requirements of explosion-proof. Also known as explosion-proof lamps, explosion-proof lighting.



Different flammable gas mixture environments have different requirements for the explosion-proof grade and explosion-proof form of the explosion-proof lamp.



Scope of application



1. It is suitable for hazardous locations in zone 1 and zone 2 of explosive gas environment;



2. Suitable for IIA, IIB, IIC level explosive gas environment;



3. Applicable to areas 20, 21 and 22 of combustible dust environment;



4. It is suitable for the environment where the temperature group is T1-T6.



Installation



Explosion-proof lights should be checked from the nameplate and product manual before installation: explosion-proof type, category, level, group; protection level of the shell; installation method and requirements for fasteners for installation, etc. The installation of the explosion-proof lamp should ensure that it is firmly fixed, the fastening bolts should not be replaced at will, and the spring washers should be complete. The dust-proof and waterproof sealing ring should be placed as it is when installing.



Where the cable enters, the cable and the sealing gasket should be closely matched, the cross section of the cable should be round, and the surface of the sheath should not have defects such as unevenness. Excess inlets must be sealed according to the explosion-proof type, and the compression nut must be tightened to seal the inlets.



JUVI Company

  • JUVI is an integrated marine technology company that presently specializes in productdesign,production, and sales.
  • JUVI is administered by the marine equipment production systems.
  • Our products have sold to regions as far away as Europe, North America and Asia, among others.
  • We regularly introduce the most advanced foreign products and technologies into the domestic market and routinely share the latest in scientific and technological advancements with related domestic industries, thus providing a platform of speed and convenience From our beginnings as an international trade business model to an integrated technology solutions business model, Juvi Company has grown and transformed itself to better serve the needs of our customers.
