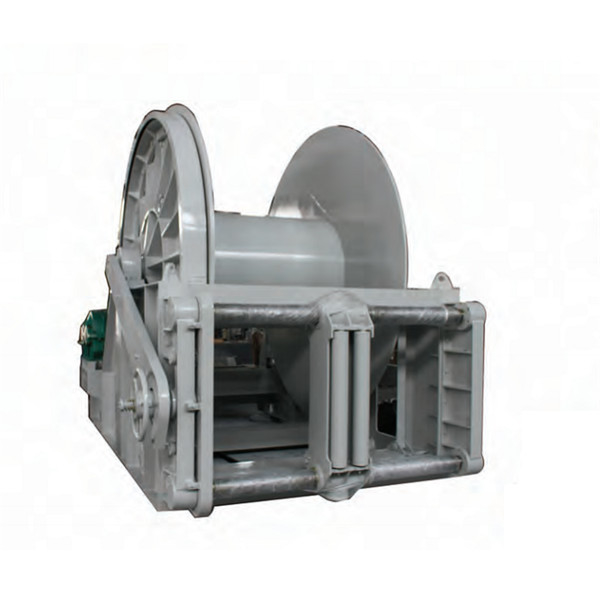

Drum Rated Load 150KN Drum Capacity 200m Hydraulic Towing Winch
|Place of Origin:||China|
|Certification:||CCS, ABS, LR, RMRS, etc|
|Model Number:||Marine Hydraulic Towing Winch|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard Export Packing|
|Delivery Time:||25 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Product Name:||Marine Drum Winch Marine Anchor Winch Ship Vessel Marine Hydraulic Towing Winch||Application:||Boat, Ship, Vessel, Jetty, Port, Dock, Etc|
|Power Source:||Electric, Hydraulic||Voltage:||DC12v, AC, 380V, DC12V/24V, 50HZ/60HZ|
|Drum Rated Load (KN):||30-350||Cable Dia. (mm):||28-100|
|HPU E-motor Power:||15-160||Cable Rated Speed (m/min):||≥15|
|Material:||Steel, Stainless Steel||Structure:||Hydraulic System And Control System, Cable Drum, Wire Rope, Motors|
150KN hydraulic towing winch,
200m hydraulic towing winch,
200KN hydraulic towing winch
Marine Drum Winch Marine Anchor Winch Ship Vessel Marine Hydraulic Towing Winch
Specification of Marine Hydraulic Towing Winch
|Drum rated load
|Cable rated speed
|Cable Dia. (mm)||Drum capacity
|HPU E-motor power
with single drum (mm)
|Winch dimension with double drums (mm)|
|Deck Equipment Series||1. Mooring Rope/Cable Winch(Hydraulic/Electric)
2. Mooring Anchor Windlass/Winch(Hydraulic/Electric)
3. Mooring Towing Winch
4. Mooring Position Winch
5. Cargo Winch
6. Moving-Boat Winch
7. Scientific Research Winch
8. Linear Winch
9. Double Row Rope Winch
10. Winch Type Towing System
11. Military Bell Winch
12. Offshore Winch
|Drive Power||Electric /Hydraulic/ Manual/ Diesel|
Gypsy and Drum
|Gypsy Size||Dia. 12.5-127mm(U2,U3), Customized|
|Working Load||1 Ton to 350 Ton, Customized|
|Warping Head||10KN-100KN, Customized|
|Holding Load||68KN-3010KN, Customized|
|Power Required||4-132KW, Customized|
|Chain Speed||≥9m/min, Customized|
|Clutch||Manual /Hydraulic Operated Jaw Clutch|
|Brake||Spring Applied Pneumatically or Hydraulic Released Band Brake|
|Release||Emergency Quick Release|
|Control Type||Local Control Console and remote Control Panel|
|Options||Drag Brake System;
Length and Tension Monitoring Systems Stainless Steel Brake Drum;
|Advantages||High quality with competitive prices|
|Much experience in production and exportion|
|Special design for different clients.|
|Short delivery time if clients need urgently|
|Certificate: ABS, BV, CCS, DNV-GL, KR, LR, NK, RINA, RS, PRS, IRS, CRS|

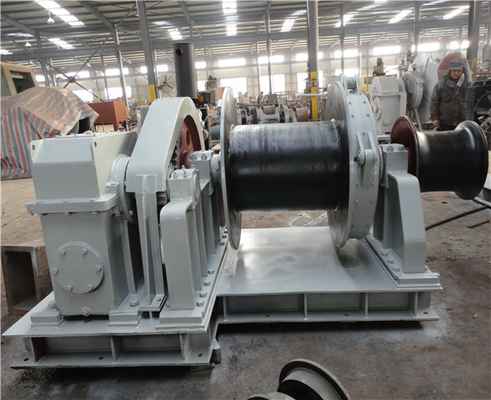

Description of Hydraulic/ Electric Driven Anchor (Warping) Winch
All Deck Machines are customized products, we can design all kinds of medium large hydraulic or electric anchor winch and single, double&combined warping winch. the products conform to GB-4447-92 standard and the requirement of each large classification society.
Anchor chain diameter 12.5-130mm, Cable winding pull 50-1000KN
Features of Mooring Winch
Single Or Double Drum
Direct On Line (DOL) Or Variable
Frequency Drive (VFD
Single Speed Or 2-Speed Motor
Integrated Modular Gear Box
Fail-Safe Motor Brake
Pneumatic Fail-Safe Band Brake With
Manual Emergency Release
Auto Clutch With Manual Override
Load And Rope Length Display
Controlled From Local Control Console
Optional Remote Control
Features of Rope Anchor Winch
Compact and Robust Welding Structure
Freewheeling by Water-cooled Drag Brake
Fail-safe Motor Brake
Fail-safe Pneumatic or Hydraulic Band Brake
Shaft Coupling for Future Extension
Suitable for 8-, 12- or 16-points Mooring Applications
Load and Rope Length Display
Anchor Handling Towing Winch includes a double drum to handle separate wire ropes for both Anchor Handling and Towing. A Remote Control Panel allows operation from the Wheelhouse.
Features of Anchor Handling Towing Winch
Strongly Reinforced Winch Frame to withstand Wire Breaking Load
Accurate shaft alignment and gear mesh
Hydraulic Operated Fail-safe Clutch
Assembly for each Drum
Individual Band Brake for each Drum
Maintenance Friendly with Pneumatic Gear Segment Lock
Control Remotely with Remote Control Panel from the Wheelhouse
The Basic Technical Requirements For Marine Winch
1. It can ensure that the ship can still be moored when the ship is under the influence of winds below level 6.
2. The pulling force should be selected according to the size of the ship and the number recommended in the "Steel Seagoing Shipmanship and Construction Rules".
3. The twisting speed is 15-30m/min, and the maximum can reach 50m/min.
4. The power used is different: electric winch, hydraulic winch.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 2 days
Q4: What's the MOQ?
MOQ is 1 set.
1.Wooden Case; 2.Iron Frame; 3.According to customers' request;
By Express/ Air/ Sea/ Train.
